Hydraulic Weight Transfer

Martin Till

  • Hydraulic Frame Weight Distribution System
  • Can be used with Frame Mounted Opener
  • Fits JD 1770 12 and 16 Row Planters
  • Fits JD 1790 31-32 Row Planters

Includes

  • In-Cab Control Box with harness (Electronic PWM version)
  • Bolt on brackets
  • Grade 8 mounting hardware
  • Industry standard durable hydraulic valve
  • Made in USA hydraulic cylinders
  • NOTE: Kit does not include custom hydraulic hoses or fittings
  • Check fit up for Center Frame Mounted Fertilizer Tanks and Brackets for possible tank mounting bracket modifications if needed

Compaction reduces plant vigor and yield. Shallow or inconsistent planting due to poor control of planter wings also robs yield. Most planters have a “weight problem”. Excess weight in the center of the planter or improper weight distribution is a constant concern. Worried about the constant changing downforce fluctuations as you plant seed and apply fertilizer? The Martin-Till WTS is your planter’s solution!

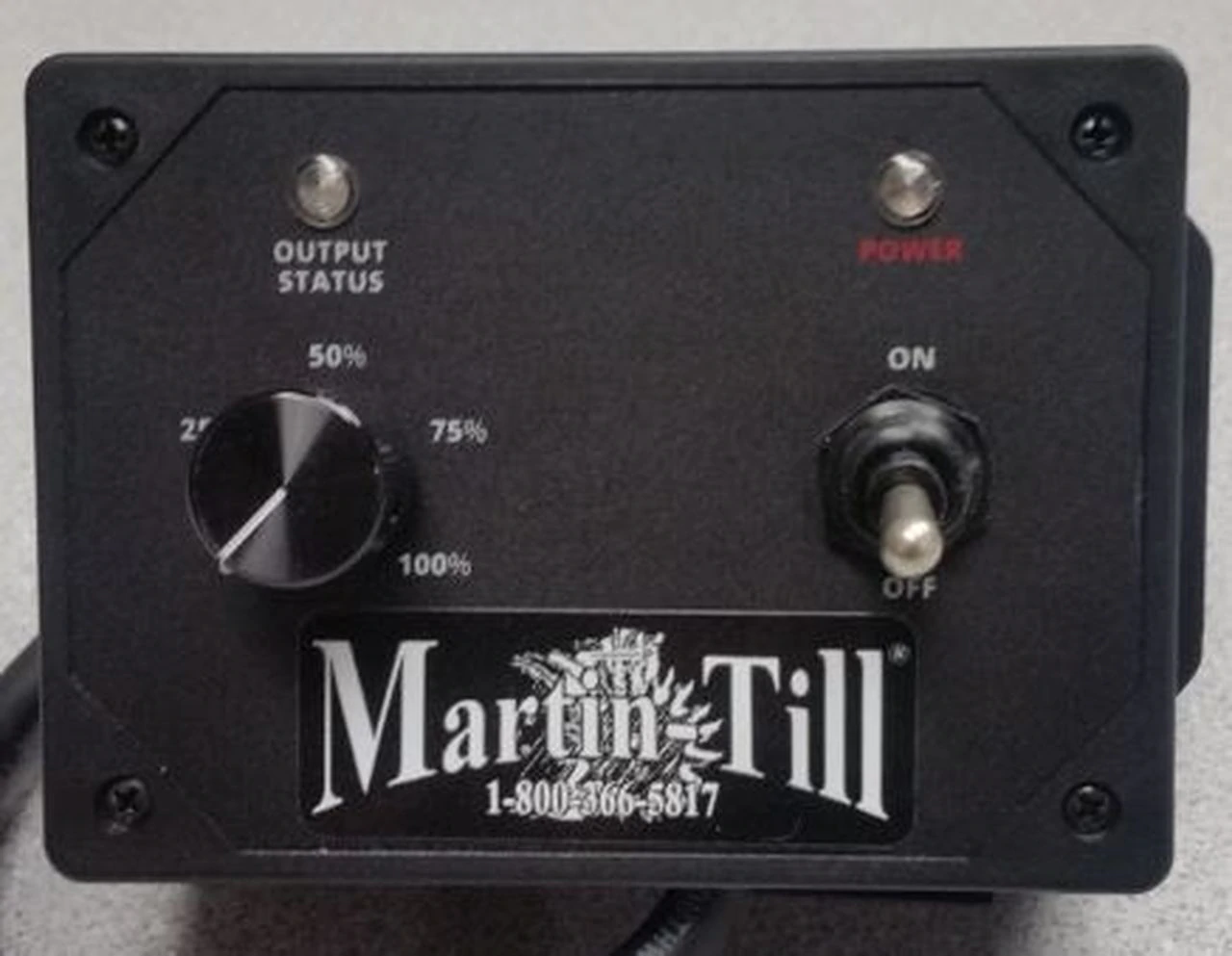

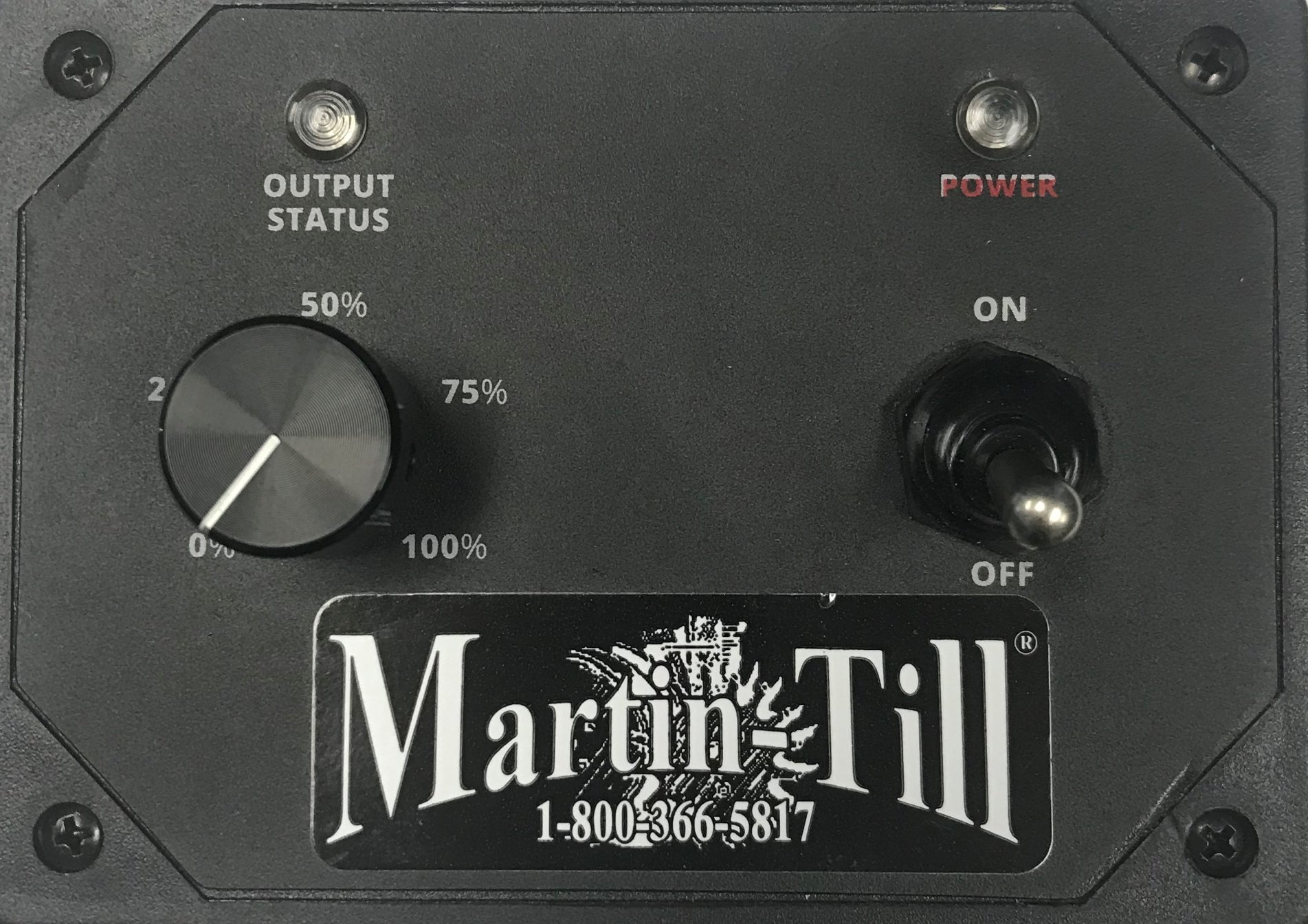

In-Cab Control

In-Cab Control Box—Allows for easy adjustment as you plant

• Hydraulic control kit provides durable and quick adjustment
• Current system fits JD 1770 Planters with 12 & 16 rows (1790 models in development)

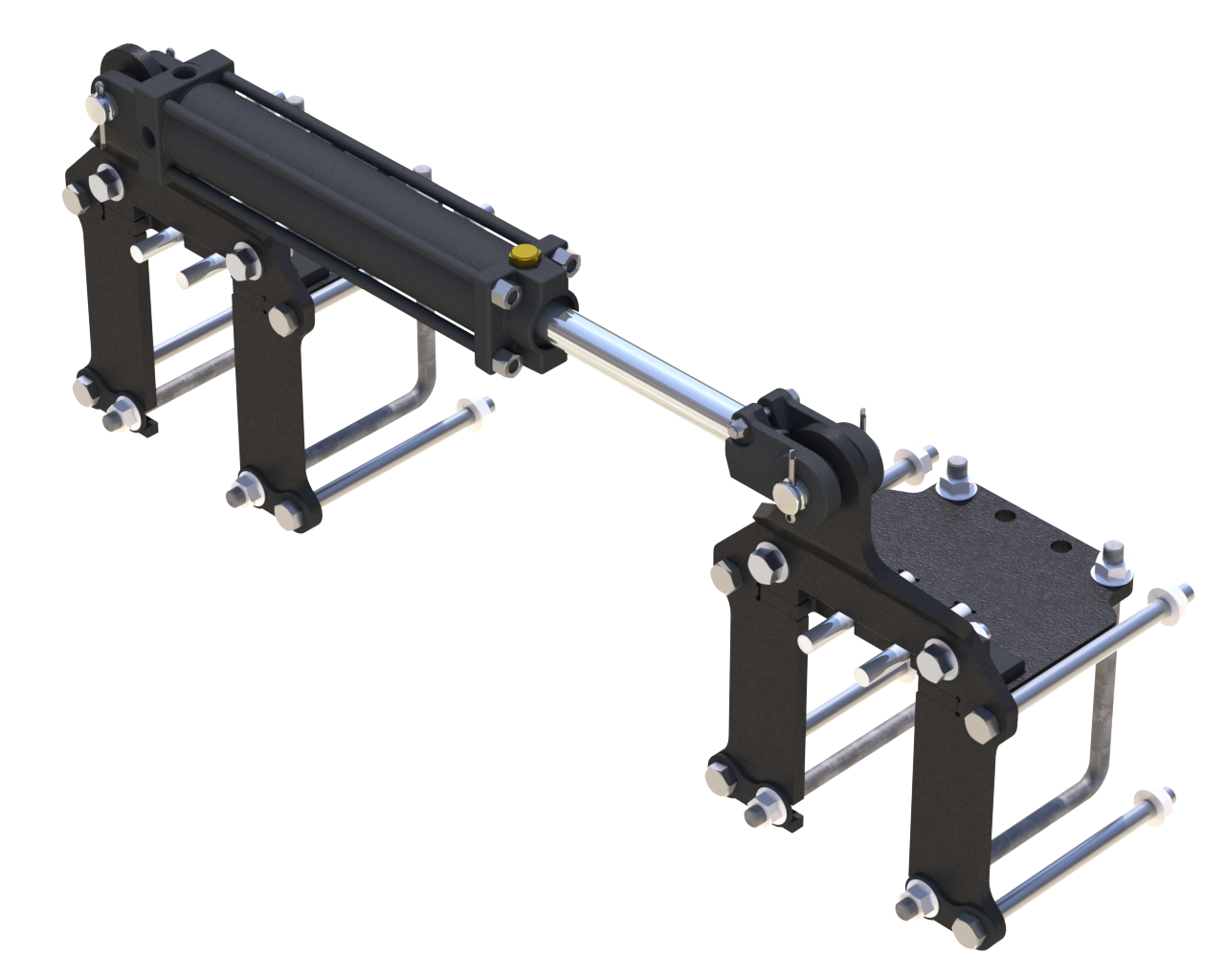

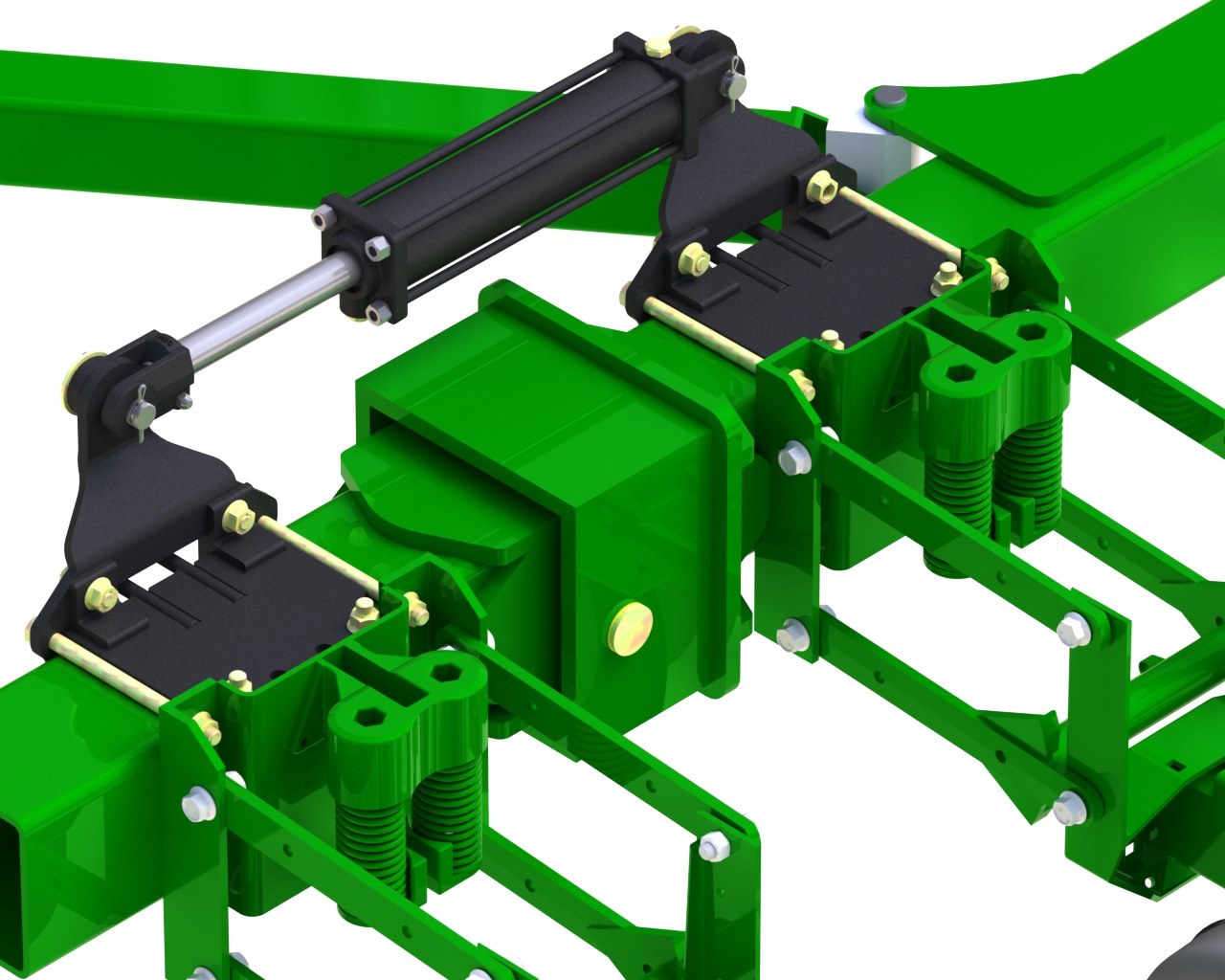

Design

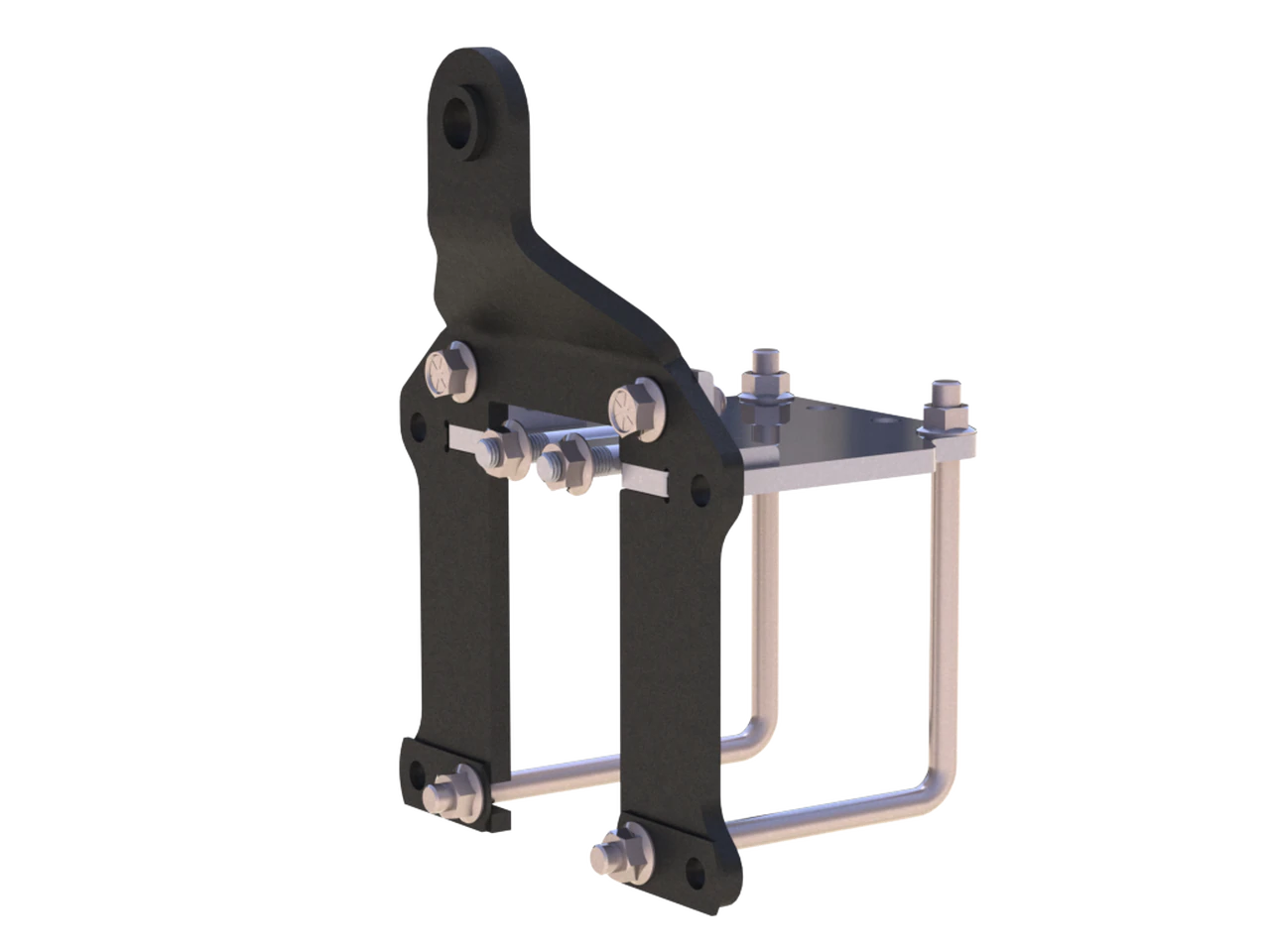

  • Bolt-On Bracket design (no welding) provides easy installation
  • Interlocking tab and slot design fit together to transfer load to the tool bar
  • Works with frame mounted 2x2 openers
